tekRadius for Windows

tekRadius for Windows
之前寫過幾篇Radius Server的研究和教學
包含for Windows XP/7 的WinRadius 和Windows 2003 Server 的IAS 和 Windows 2008 Server 的NPS

UBS-5008透過Radius做802.1x的驗證(Windows XP Radius server IEEE 802.1x)
http://www.ublink.org/index.php/2-uncategorised/92-ubs-5008-radius-802-1x-windows-xp-radius-server-ieee-802-1x

UBS-5008 Giga Switch 透過Radius做802.1x的驗證(Windows 2003 Server IAS Server Radius server IEEE 802.1x)
[http://www.ublink.org/index.php/2-uncategorised/93-ubs-5008-giga-switch-radius-802-1x-windows-2003-server-ias-server-radius-server-ieee-802-1x
](http://www.ublink.org/index.php/2-uncategorised/93-ubs-5008-giga-switch-radius-802-1x-windows-2003-server-ias-server-radius-server-ieee-802-1x<br />
)
Windows 2003 Server IAS網際網路驗證服務伺服器(Radius Server)研究與教學
http://www.ublink.org/index.php/2-uncategorised/97-windows-2003-server-ias-radius-server

Windows 2008 Server NPS網路原則與存取服務(Radius Server)研究與教學
http://www.ublink.org/index.php/2-uncategorised/98-windows-2008-server-nps-radius-server

今天來介紹另一套
terRadius for Windows
原廠網址為
http://tekradius.com/
這是一套Free的軟體
可以安裝在Windows XP和Windows 2003 Server上

測試的時候是v4.4版
資料庫型態他有 for

TekRADIUS (Microsoft SQL Server Edition)
TekRADIUS LT (SQLite Edition)
TekRADIUS Database Converter (TekRADIUS <-> TekRADIUS LT)

此三種版本
我們TEST for Microsoft SQL Server那一版
所以需要的工具是
Microsoft SQL Server 2005 Express Edition
他也是合法授權 Free版
Download下載位置是
http://www.microsoft.com/downloads/zh-tw/details.aspx?FamilyID=220549B5-0B07-4448-8848-DCC397514B41

而tekRadius還需要一個軟體元件
Microsoft .NET Framework 4
Download下載位置是
http://www.microsoft.com/downloads/zh-tw/details.aspx?FamilyID=0a391abd-25c1-4fc0-919f-b21f31ab88b7

順序是先安裝Microsoft .NET Framework 4
再安裝Microsoft SQL Server 2005 Express Edition
安裝Microsoft SQL Server 2005 Express Edition時
我們習慣啟用sa
然後安裝tekRadius for Microsoft SQL Serve 版

安裝好之後
在控制畫面

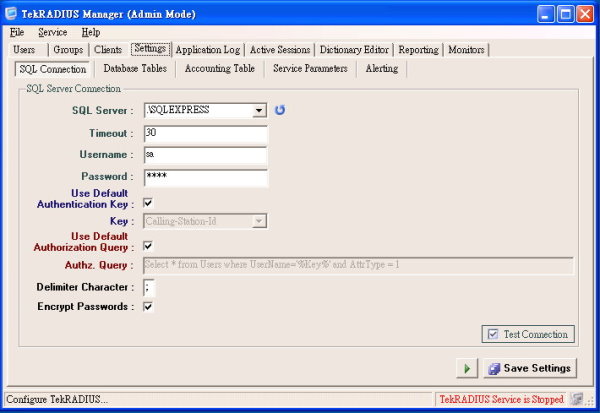

Settings
SQL Connection
先設定SQL Server的sa和Password


然後點Save Settings

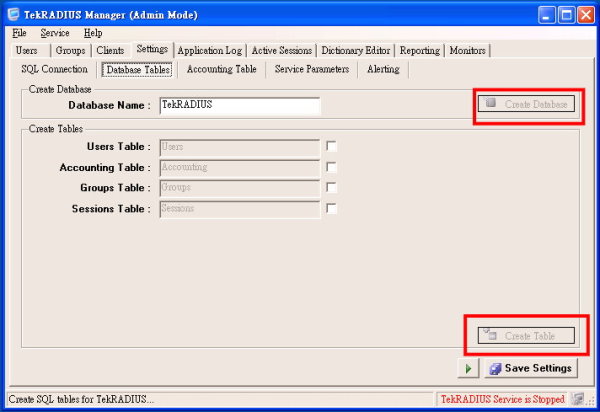

然後改點
Database Tables
點一次右邊上面的Create Database
再點一次右下的Create Table
這樣就完成資料庫的Link了

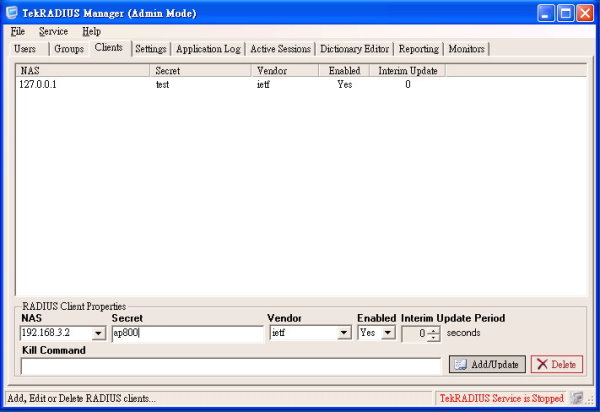

然後開始加Client

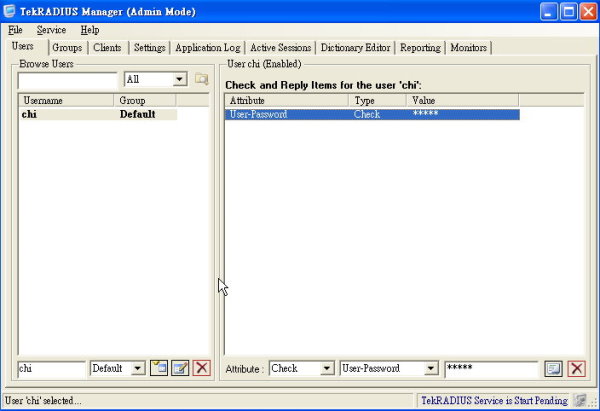

加User

Radius Server可以簡單到只驗證帳號跟密碼
但是他也可以複雜到一定要雙方有CA的key
