04 - 透過OpenXML SDK存取pptx

關於資料剖析的初步想法

因為最終要產出的教材,是靜態的html檔案,所以資料最好能轉成成方便Javascript處理的格式,也就是JSON或是.js檔。

既然微軟有OpenXML SDK,透過他來存取pptx檔,取出其中的資訊把它轉成JSON,也許是一個比較快的方法。那麼就先來試試看OpenXML SDK。

參考文件及工具

  1. 既然是微軟的SDK,MSDN上面一定有工具可以用:Welcome to the Open XML SDK 2.5 for Office
  2. ECMA-376規格書要查閱比較麻煩,幸好有人做了一些整理:Office Open XML
  3. 還是需要觀察pptx解出來的xml文件,但是這樣很難閱讀,所以需要比較方便的閱讀器,目前先用這個線上的XML Beautifier,除了把XML內容美化,他還有轉成樹狀結構的功能,適當地收放結構,會比較容易見樹又見林:XML

我的開發環境

公司電腦是有Visual Studio,但是那是公司電腦...我自己是使用Mac,所以先來試用Mac上的開發工具。微軟的.NET Core可以在OSX上跑,不幸的是...很多套件還不支援,包含OpenXML SDK,所以先來用Mono。另外,Xamarin Studio可以直接開發Mono的專案,而且內建NuGet套件管理工具以及語法完成等方便的功能。就先用它了。

怎麼安裝就不說了,先開個Console專案,用NuGet裝好OpenXML SDK,就可以開始嘗試OpenXML SDK的諸多功能。

動手寫個Prober

最初的動機是希望拿到一個pptx檔後,透過這個Prober就可以看到裡面使用的物件結構。其實沒寫完,但是...因為從物件的屬性往下遞迴,所以只要給根物件之後,他會把過Reflection所有屬性以及下一層的物件都印出來,這樣只要給他PresentationPart物件就會一直往下跑。

先來看程式。首先是Console的主程式Program.cs:

using System;
using SlideProbe.Utils;

namespace SlideProbe
{
	class MainClass
	{
		public static void Main(string[] args)
		{
			if (args.Length < 2)
			{
				Console.WriteLine("Usage: mono SlideProbe.exe [mode] [pptx file path]");
				Help();
				return;
			}
			string mode = args[0];
			string file = args[1];
			try
			{
				switch (mode)
				{
					case "presentation":
						PresentationInfo pi = new PresentationInfo(file);
						string[] keys = pi.AllKeys();
						foreach (string key in keys)
						{
							pi.GetInfo(key);
						}
						break;
					case "slide":
						Console.WriteLine("[slide] mode not done yet.");
						break;
					case "layout":
						Console.WriteLine("[layout] mode not done yet.");
						break;
					case "master":
						Console.WriteLine("[master] mode not done yet.");
						break;
					case "theme":
						Console.WriteLine("[theme] mode not done yet.");
						break;
					default:
						Console.WriteLine("Error: Provided mode not supported.");
						Help();
						break;
				}
			}
			catch (Exception ex)
			{
				Console.WriteLine(ex.Message);
				Console.WriteLine("-----------");
				Console.WriteLine("Usage: mono SlideProbe.exe [mode] [pptx file path]");
				Help();
			}
		}
		private static void Help()
		{
			Console.WriteLine("");
			Console.WriteLine("Supported mode:");
			Console.WriteLine("[presentation] provide info about the presentation file.");
			Console.WriteLine("[slide] provide info about every slides.");
			Console.WriteLine("[layout] provide info about slide layout used by each slide.");
			Console.WriteLine("[master] provide info about slide master used by each slide layout.");
			Console.WriteLine("[theme] provide info about the theme used by each slide layout.");
		}
	}
}

負責做探測的程式放在Utils這個命名空間,首先是一個簡單的基底類別InfoBase.cs:

using System;
using System.Reflection;
using System.Collections.Generic;
using DocumentFormat.OpenXml.Packaging;

namespace SlideProbe.Utils
{
	public class InfoBase
	{
		public HashSet<string> cache;
		public string indent;

		public InfoBase()
		{
			cache = new HashSet<string>();
			indent = "  ";
		}

		public void GetInfo(string key)
		{
			Type type = GetType();
			string member = "Get" + key + "Info";
			try
			{
				MethodInfo mi = type.GetMethod(member);
				if (mi == null)
				{
					Console.WriteLine("Error(1): Method \"" + member + "\" of class " + type.FullName + " not found.");
					return;
				}
				mi.Invoke(this, BindingFlags.Default, null, null, null);
			}
			catch (Exception ex)
			{
				if (ex.InnerException != null)
				{
					Console.WriteLine("Error: " + ex.InnerException.Message);
				}
				else
				{
					Console.WriteLine("Error: " + ex.Message);
				}
			}
		}

		public void ShowProperties(object o)
		{
			ShowProperties(o, "");
		}

		protected void ShowProperties(object o, string prefix)
		{
			if (null == o)
			{
				return;
			}
			Type type = o.GetType();
			//Console.WriteLine("");
			Console.BackgroundColor = ConsoleColor.Blue;
			Console.ForegroundColor = ConsoleColor.White;
			Console.Write(prefix + type.FullName + " : " + type.BaseType.FullName);
			Console.BackgroundColor = ConsoleColor.Black;
			Console.ResetColor();
			if (!cache.Contains(o.GetType().FullName))
			{
				cache.Add(o.GetType().FullName);
				Console.WriteLine("");
			}
			else
			{
				Console.Write(" (type probed.)");
				Console.WriteLine("");
				return;
			}
			foreach (PropertyInfo pi in type.GetProperties())
			{
				if (pi.CanRead)
				{
					int l = pi.GetIndexParameters().Length;
					if (l > 0)
					{
						//Console.Write(prefix + "1[Indexed]\t" + pi.Name + ": ");
						Console.Write(prefix + indent + Decorate(pi.Name) + ": ");
						Console.ForegroundColor = ConsoleColor.Gray;
						Console.Write("(Indexed Property)");
					}
					else
					{
						var value = pi.GetValue(o, null);
						if (null != value)
						{
							Type vt = value.GetType();
							if (vt.FullName.Contains("DocumentFormat.OpenXml"))
							{
								if (vt.FullName.Contains("DocumentFormat.OpenXml.Packaging.OpenXmlPartContainer"))
								{
									Console.BackgroundColor = ConsoleColor.Black;
									//Console.Write(prefix + "7[Part]" + indent + pi.Name + " (" + vt.FullName + ") : ");
									Console.Write(prefix + indent + Decorate(pi.Name) + ": ");

									var pairs = value as IEnumerable<IdPartPair>;

									if (pairs != null)
									{
										Console.WriteLine("");
										foreach (var pair in (IEnumerable<IdPartPair>)value)
										{
											if (pair.OpenXmlPart != null)
											{
												ShowDetail(o, pair.OpenXmlPart, prefix);
											}
											else
											{
												//Console.Write(prefix + "6" + indent + pi.Name + ": ");
												Console.Write(prefix + indent + Decorate(pi.Name) + ": ");
											}
										}
									}
								}
								else
								{
									Console.BackgroundColor = ConsoleColor.Black;
									//Console.Write(prefix + "5" + indent + pi.Name + ": ");
									Console.Write(prefix + indent + Decorate(pi.Name) + ": ");
									if (value != null)
									{
										ShowDetail(o, value, "");
									}
									else
									{
										//Console.Write(prefix + "6" + indent + pi.Name + ": ");
										Console.Write(prefix + indent + Decorate(pi.Name) + ": ");
									}
								}
							}
							else
							{
								//Console.Write(prefix + "2[Others]" + indent + pi.Name + ": ");
								Console.Write(prefix + indent + Decorate(pi.Name) + ": ");
								Console.ForegroundColor = ConsoleColor.Gray;
								Console.Write(value);
								Console.ResetColor();
							}
						}
						else {
							//Console.Write(prefix + "3[Null]" + indent + pi.Name + ": ");
							Console.Write(prefix + indent + Decorate(pi.Name) + ": ");
						}
					}
				}
				else
				{
					//Console.Write(prefix + "4[WriteOnly]" + indent + pi.Name + ": ");
					Console.Write(prefix + indent + Decorate(pi.Name) + ": ");
				}
				Console.WriteLine("");
			}
		}

		protected void ShowDetail(object o, object value, string prefix)
		{
			if (value != null)
			{
				Console.ForegroundColor = ConsoleColor.Gray;
				Type sub = o.GetType();
				if (sub.IsPrimitive)
				{
					Console.Write(value);
					Console.ResetColor();
				}
				else
				{
					Console.ResetColor();
					ShowProperties(value, prefix + indent);
				}
			}
		}

		protected string Decorate(string name)
		{
			return "[" + name + "]";
		}
	}
}

為了避免程式跑到堆疊溢位...裡面加上了一些限制:

  1. 只有屬於DocumentFormat.OpenXml之下的物件,才會做進一步的探查,否則只會列出值
  2. 程式會記錄有探查過的類別,只要有做過探查,就不會做下去...(裡面似乎有類別會有循環參考...)

然後是實際要呼叫的類別,因為要從PresentationPart開始探查,所以叫做PresentationInfo.cs:

using System;
using System.Reflection;
using DocumentFormat.OpenXml;
using DocumentFormat.OpenXml.Presentation;
using DocumentFormat.OpenXml.Packaging;

namespace SlideProbe.Utils
{
	public class PresentationInfo : InfoBase
	{
		private string file;
		public PresentationDocument ppt;

		public PresentationInfo(string _file)
		{
			file = _file;
			ppt = PresentationDocument.Open(file, false);
		}

		public string[] AllKeys()
		{
			return new string[] {
				"PresentationPart"/*,
				"Presentation"*/
			};
		}

		public void GetPresentationPartInfo()
		{
			ShowProperties(ppt.PresentationPart);
		}

		public void GetPresentationInfo()
		{
			ShowProperties(ppt.PresentationPart.Presentation);
		}
	}
}

因為主要的工作其實在InfoBase.cs做完了,所以程式只有一點。另外Presentation其實透過PresentationPart.Presentation就會找到,所以就直接放棄。

程式跑起來像這樣:

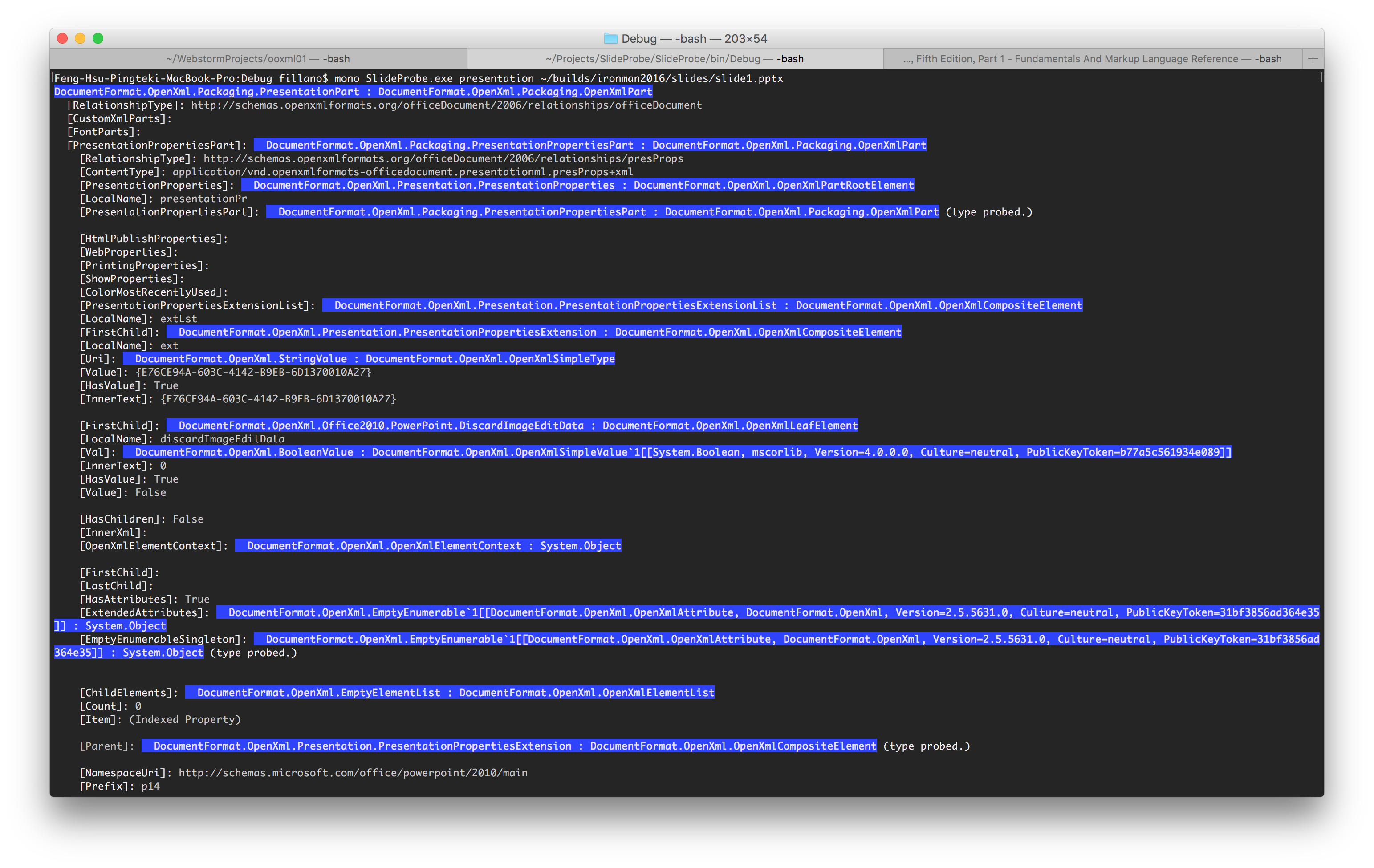

程式開始

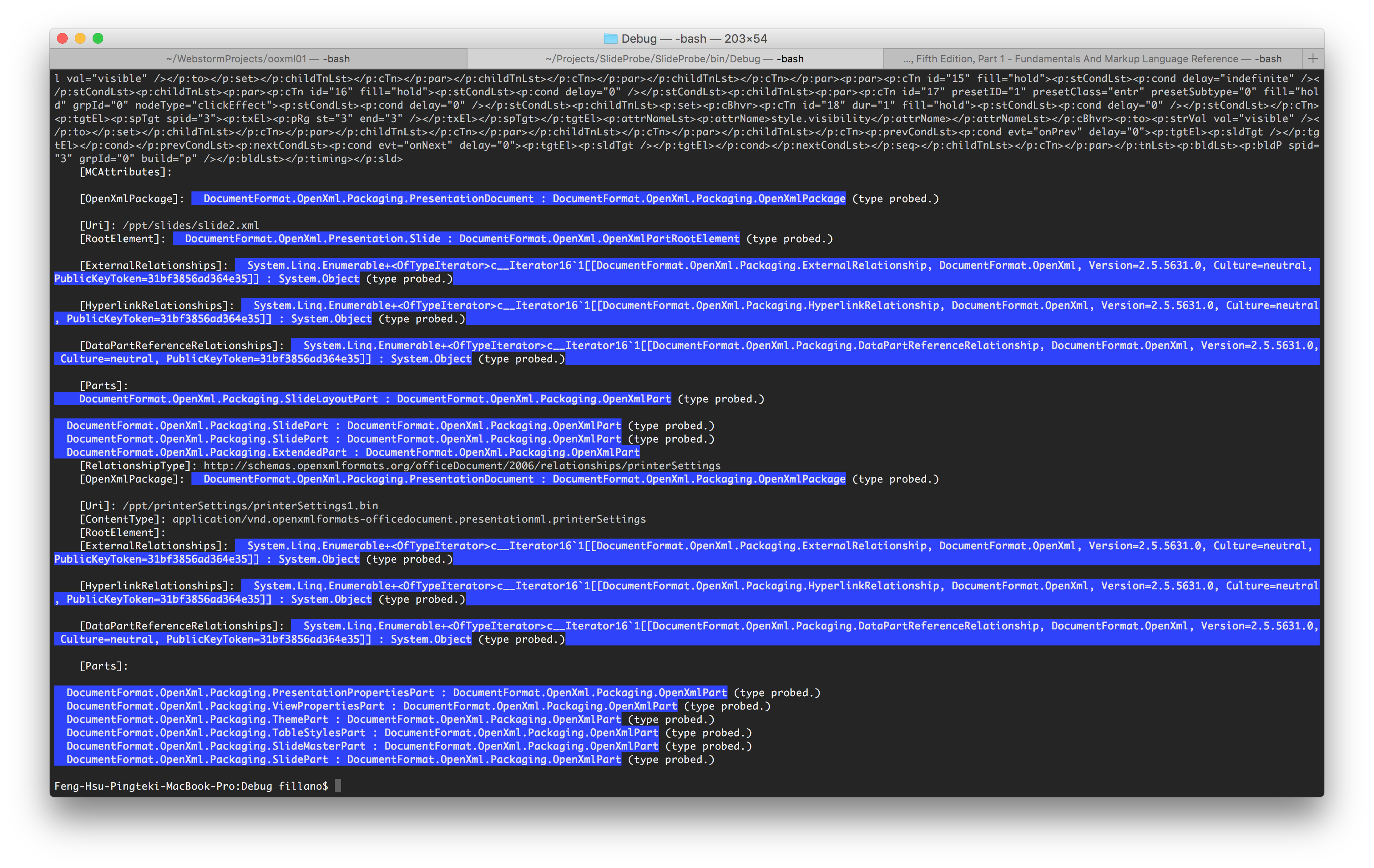

最後一行結果:

最後一行

另外用wc -l統計了一下,包含空行總共輸出了5243行...

藍底白字的是類別的資訊,方括號框起來的是Property Name。另外,有一個特別的Property名字通常叫做「Parts」,這裡面會有不同Part文件的關聯性列表。在InfoBase.cs裡面有特別處理。

程式中沒有列出「方法」...因為重複的太多,所以就省略了。不過有一個方法Descends()最好是一開始就知道的,後面會再提到。

通過觀察,可以發現OpenXML SDK的架構大概是像這樣:

  1. pptx裡面有許多的xml文件,OpenXML SDK通常會使用兩種類別來處理,以根的PresentationPart為例:
    1. PresentationPart負責文件之間的關係,文件本身的資料,在PresentationPart.Presentation
    2. PresentationPart的完整類別名稱是DocumentFormat.OpenXml.Packaging.PresentationPart
    3. Presentation的完整類別名稱是DocumentFormat.OpenXml.Presentation.Presentation
  2. 其他的類別也幾乎都有這樣的對應關係,例如SlidePart跟Slide、SlideLayoutPart跟SlideLayout、SlideMaster跟SlideMaster等等
  3. 其實之前文章中有提到,_rels目錄中會有一個跟上層目錄中的xml相對應的檔案,只是檔名在.xml後面又加了.rels。這個檔案是用來描述與這個xml相關的其他xml檔的關聯。

使用OpenXML SDK的優缺點

優點

  1. 架構還蠻清楚的,而且跟pptx中的檔案可以對應起來
  2. 程式不是很難寫,只是有些地方有點囉嗦
  3. 如果使用.NET技術來開發網站,會比較容易整合(不過這不是我目前需要的XD)

缺點

  1. 如果不熟Office OpenXML的話,其實不好上手,而且如果不是要直接處理pptx檔而是有其他目的,用起來有點麻煩
  2. 關鍵在於,透過這些可以直接探查到的類別,只能碰到xml檔的一些基本資訊,真正需要的簡報資訊例如使用的圖形、圖片、文字、顏色對應、字型等等,都不會放在這些類別的屬性中,必須透過Descends方法去查詢(有點像DOM的getElementsByTagName()方法),或是透過ChildElements、FirstChild、LastChild等屬性一層一層查訪下去,這樣要做轉檔還有點小麻煩...

之後也用node.js來做做看,不過這樣就要直接碰xml檔XD

另外,程式檔我打包了,可以直接下載來用用看:SlideProbe.zip
