Day19 - 幽影巡查,黑暗中的死亡筆記本:Windows 進程枚舉術(下)

  • 分享至 

  • xImage
  •

走在時代前沿的前言

Ayo 大家,先跟大家分享一個好消息,就是今天睡覺睡好久好開心(?

我們昨天已經和大家介紹過了如何使用 EnumProcesses 來枚舉進程,那今天會再介紹另一種方式來枚舉進程。

完整程式碼可於此處找到:https://black-hat-zig.cx330.tw/Advanced-Malware-Techniques/Process-Enumeration/nt_query_system_information/

疊甲

中華民國刑法第 362 條:「製作專供犯本章之罪之電腦程式,而供自己或他人犯本章之罪,致生損害於公眾或他人者,處五年以下有期徒刑、拘役或科或併科六十萬元以下罰金。」

本系列文章涉及多種惡意程式的技術,旨在提升個人技術能力與資安意識。本人在此強烈呼籲讀者,切勿使用所學到的知識與技術從事任何違法行為!

Zig 版本

本系列文章中使用的 Zig 版本號為 0.14.1。

NtQuerySystemInformation 簡介

在今天的範例中,我們會使用 NtQuerySystemInformation 這個 NTAPI 來進行進程的枚舉,因為 NtQuerySystemInformation 是一個系統呼叫(System call, syscall),它是由 ntdll.dll 匯出的,所以我們要使用它時會需要用到前面提到過的 GetModuleHandleGetProcAddress

我們可以先來看一下微軟的官方文檔,來了解一下這個函數的定義。

__kernel_entry NTSTATUS NtQuerySystemInformation(
  [in]            SYSTEM_INFORMATION_CLASS SystemInformationClass,
  [in, out]       PVOID                    SystemInformation,
  [in]            ULONG                    SystemInformationLength,
  [out, optional] PULONG                   ReturnLength
);

而其中這個 SYSTEM_INFORMATION_CLASS 是一個枚舉(Enum),呼叫者需要傳入想要查詢的資訊,包括但不限於以下這些:

  • SystemProcessInformation

    • 本範例中將會使用使用這個標誌
    • 取得系統的所有進程,它會回傳一個 SYSTEM_PROCESS_INFORMATION 結構體陣列,每個結構體就代表一個進程
  • SystemModuleInformation

    • 列舉系統的核心模組
  • SystemHandleInformation

    • 取得系統的句柄資訊
  • SystemTimeOfDayInformation

    • 取得系統時間

如果對這個枚舉想要知道更多資訊,可以去網路上查查大家逆向出來的資料。因為這個枚舉是提供給 NTAPI 使用,所以鮮少有資訊被公布在微軟的官方文檔中。在這邊我有查到 NtDoc 所提供的資料,我把他們提供的枚舉的值放在下方。

//
// System Information
//

// rev
// private
typedef enum _SYSTEM_INFORMATION_CLASS
{
    SystemBasicInformation,                                 // q: SYSTEM_BASIC_INFORMATION
    SystemProcessorInformation,                             // q: SYSTEM_PROCESSOR_INFORMATION
    SystemPerformanceInformation,                           // q: SYSTEM_PERFORMANCE_INFORMATION
    SystemTimeOfDayInformation,                             // q: SYSTEM_TIMEOFDAY_INFORMATION
    SystemPathInformation,                                  // q: not implemented
    SystemProcessInformation,                               // q: SYSTEM_PROCESS_INFORMATION
    SystemCallCountInformation,                             // q: SYSTEM_CALL_COUNT_INFORMATION
    SystemDeviceInformation,                                // q: SYSTEM_DEVICE_INFORMATION
    SystemProcessorPerformanceInformation,                  // q: SYSTEM_PROCESSOR_PERFORMANCE_INFORMATION (EX in: USHORT ProcessorGroup)
    SystemFlagsInformation,                                 // qs: SYSTEM_FLAGS_INFORMATION
    SystemCallTimeInformation,                              // q: SYSTEM_CALL_TIME_INFORMATION // not implemented // 10
    SystemModuleInformation,                                // q: RTL_PROCESS_MODULES
    SystemLocksInformation,                                 // q: RTL_PROCESS_LOCKS
    SystemStackTraceInformation,                            // q: RTL_PROCESS_BACKTRACES
    SystemPagedPoolInformation,                             // q: not implemented
    SystemNonPagedPoolInformation,                          // q: not implemented
    SystemHandleInformation,                                // q: SYSTEM_HANDLE_INFORMATION
    SystemObjectInformation,                                // q: SYSTEM_OBJECTTYPE_INFORMATION mixed with SYSTEM_OBJECT_INFORMATION
    SystemPageFileInformation,                              // q: SYSTEM_PAGEFILE_INFORMATION
    SystemVdmInstemulInformation,                           // q: SYSTEM_VDM_INSTEMUL_INFO
    SystemVdmBopInformation,                                // q: not implemented // 20
    SystemFileCacheInformation,                             // qs: SYSTEM_FILECACHE_INFORMATION; s (requires SeIncreaseQuotaPrivilege) (info for WorkingSetTypeSystemCache)
    SystemPoolTagInformation,                               // q: SYSTEM_POOLTAG_INFORMATION
    SystemInterruptInformation,                             // q: SYSTEM_INTERRUPT_INFORMATION (EX in: USHORT ProcessorGroup)
    SystemDpcBehaviorInformation,                           // qs: SYSTEM_DPC_BEHAVIOR_INFORMATION; s: SYSTEM_DPC_BEHAVIOR_INFORMATION (requires SeLoadDriverPrivilege)
    SystemFullMemoryInformation,                            // q: SYSTEM_MEMORY_USAGE_INFORMATION // not implemented
    SystemLoadGdiDriverInformation,                         // s: (kernel-mode only)
    SystemUnloadGdiDriverInformation,                       // s: (kernel-mode only)
    SystemTimeAdjustmentInformation,                        // qs: SYSTEM_QUERY_TIME_ADJUST_INFORMATION; s: SYSTEM_SET_TIME_ADJUST_INFORMATION (requires SeSystemtimePrivilege)
    SystemSummaryMemoryInformation,                         // q: SYSTEM_MEMORY_USAGE_INFORMATION // not implemented
    SystemMirrorMemoryInformation,                          // qs: (requires license value "Kernel-MemoryMirroringSupported") (requires SeShutdownPrivilege) // 30
    SystemPerformanceTraceInformation,                      // qs: (type depends on EVENT_TRACE_INFORMATION_CLASS)
    SystemObsolete0,                                        // q: not implemented
    SystemExceptionInformation,                             // q: SYSTEM_EXCEPTION_INFORMATION
    SystemCrashDumpStateInformation,                        // s: SYSTEM_CRASH_DUMP_STATE_INFORMATION (requires SeDebugPrivilege)
    SystemKernelDebuggerInformation,                        // q: SYSTEM_KERNEL_DEBUGGER_INFORMATION
    SystemContextSwitchInformation,                         // q: SYSTEM_CONTEXT_SWITCH_INFORMATION
    SystemRegistryQuotaInformation,                         // qs: SYSTEM_REGISTRY_QUOTA_INFORMATION; s (requires SeIncreaseQuotaPrivilege)
    SystemExtendServiceTableInformation,                    // s: (requires SeLoadDriverPrivilege) // loads win32k only
    SystemPrioritySeparation,                               // s: (requires SeTcbPrivilege)
    SystemVerifierAddDriverInformation,                     // s: UNICODE_STRING (requires SeDebugPrivilege) // 40
    SystemVerifierRemoveDriverInformation,                  // s: UNICODE_STRING (requires SeDebugPrivilege)
    SystemProcessorIdleInformation,                         // q: SYSTEM_PROCESSOR_IDLE_INFORMATION (EX in: USHORT ProcessorGroup)
    SystemLegacyDriverInformation,                          // q: SYSTEM_LEGACY_DRIVER_INFORMATION
    SystemCurrentTimeZoneInformation,                       // qs: RTL_TIME_ZONE_INFORMATION
    SystemLookasideInformation,                             // q: SYSTEM_LOOKASIDE_INFORMATION
    SystemTimeSlipNotification,                             // s: HANDLE (NtCreateEvent) (requires SeSystemtimePrivilege)
    SystemSessionCreate,                                    // q: not implemented
    SystemSessionDetach,                                    // q: not implemented
    SystemSessionInformation,                               // q: not implemented (SYSTEM_SESSION_INFORMATION)
    SystemRangeStartInformation,                            // q: SYSTEM_RANGE_START_INFORMATION // 50
    SystemVerifierInformation,                              // qs: SYSTEM_VERIFIER_INFORMATION; s (requires SeDebugPrivilege)
    SystemVerifierThunkExtend,                              // qs: (kernel-mode only)
    SystemSessionProcessInformation,                        // q: SYSTEM_SESSION_PROCESS_INFORMATION
    SystemLoadGdiDriverInSystemSpace,                       // qs: SYSTEM_GDI_DRIVER_INFORMATION (kernel-mode only) (same as SystemLoadGdiDriverInformation)
    SystemNumaProcessorMap,                                 // q: SYSTEM_NUMA_INFORMATION
    SystemPrefetcherInformation,                            // qs: PREFETCHER_INFORMATION // PfSnQueryPrefetcherInformation
    SystemExtendedProcessInformation,                       // q: SYSTEM_EXTENDED_PROCESS_INFORMATION
    SystemRecommendedSharedDataAlignment,                   // q: ULONG // KeGetRecommendedSharedDataAlignment
    SystemComPlusPackage,                                   // qs: ULONG
    SystemNumaAvailableMemory,                              // q: SYSTEM_NUMA_INFORMATION // 60
    SystemProcessorPowerInformation,                        // q: SYSTEM_PROCESSOR_POWER_INFORMATION (EX in: USHORT ProcessorGroup)
    SystemEmulationBasicInformation,                        // q: SYSTEM_BASIC_INFORMATION
    SystemEmulationProcessorInformation,                    // q: SYSTEM_PROCESSOR_INFORMATION
    SystemExtendedHandleInformation,                        // q: SYSTEM_HANDLE_INFORMATION_EX
    SystemLostDelayedWriteInformation,                      // q: ULONG
    SystemBigPoolInformation,                               // q: SYSTEM_BIGPOOL_INFORMATION
    SystemSessionPoolTagInformation,                        // q: SYSTEM_SESSION_POOLTAG_INFORMATION
    SystemSessionMappedViewInformation,                     // q: SYSTEM_SESSION_MAPPED_VIEW_INFORMATION
    SystemHotpatchInformation,                              // qs: SYSTEM_HOTPATCH_CODE_INFORMATION
    SystemObjectSecurityMode,                               // q: ULONG // 70
    SystemWatchdogTimerHandler,                             // s: SYSTEM_WATCHDOG_HANDLER_INFORMATION // (kernel-mode only)
    SystemWatchdogTimerInformation,                         // qs: out: SYSTEM_WATCHDOG_TIMER_INFORMATION (EX in: ULONG WATCHDOG_INFORMATION_CLASS) // NtQuerySystemInformationEx
    SystemLogicalProcessorInformation,                      // q: SYSTEM_LOGICAL_PROCESSOR_INFORMATION (EX in: USHORT ProcessorGroup) // NtQuerySystemInformationEx
    SystemWow64SharedInformationObsolete,                   // q: not implemented
    SystemRegisterFirmwareTableInformationHandler,          // s: SYSTEM_FIRMWARE_TABLE_HANDLER // (kernel-mode only)
    SystemFirmwareTableInformation,                         // q: SYSTEM_FIRMWARE_TABLE_INFORMATION
    SystemModuleInformationEx,                              // q: RTL_PROCESS_MODULE_INFORMATION_EX // since VISTA
    SystemVerifierTriageInformation,                        // q: not implemented
    SystemSuperfetchInformation,                            // qs: SUPERFETCH_INFORMATION // PfQuerySuperfetchInformation
    SystemMemoryListInformation,                            // q: SYSTEM_MEMORY_LIST_INFORMATION; s: SYSTEM_MEMORY_LIST_COMMAND (requires SeProfileSingleProcessPrivilege) // 80
    SystemFileCacheInformationEx,                           // q: SYSTEM_FILECACHE_INFORMATION; s (requires SeIncreaseQuotaPrivilege) (same as SystemFileCacheInformation)
    SystemThreadPriorityClientIdInformation,                // s: SYSTEM_THREAD_CID_PRIORITY_INFORMATION (requires SeIncreaseBasePriorityPrivilege) // NtQuerySystemInformationEx
    SystemProcessorIdleCycleTimeInformation,                // q: SYSTEM_PROCESSOR_IDLE_CYCLE_TIME_INFORMATION[] (EX in: USHORT ProcessorGroup) // NtQuerySystemInformationEx
    SystemVerifierCancellationInformation,                  // q: SYSTEM_VERIFIER_CANCELLATION_INFORMATION // name:wow64:whNT32QuerySystemVerifierCancellationInformation
    SystemProcessorPowerInformationEx,                      // q: not implemented
    SystemRefTraceInformation,                              // qs: SYSTEM_REF_TRACE_INFORMATION // ObQueryRefTraceInformation
    SystemSpecialPoolInformation,                           // qs: SYSTEM_SPECIAL_POOL_INFORMATION (requires SeDebugPrivilege) // MmSpecialPoolTag, then MmSpecialPoolCatchOverruns != 0
    SystemProcessIdInformation,                             // q: SYSTEM_PROCESS_ID_INFORMATION
    SystemErrorPortInformation,                             // s: (requires SeTcbPrivilege)
    SystemBootEnvironmentInformation,                       // q: SYSTEM_BOOT_ENVIRONMENT_INFORMATION // 90
    SystemHypervisorInformation,                            // q: SYSTEM_HYPERVISOR_QUERY_INFORMATION
    SystemVerifierInformationEx,                            // qs: SYSTEM_VERIFIER_INFORMATION_EX
    SystemTimeZoneInformation,                              // qs: RTL_TIME_ZONE_INFORMATION (requires SeTimeZonePrivilege)
    SystemImageFileExecutionOptionsInformation,             // s: SYSTEM_IMAGE_FILE_EXECUTION_OPTIONS_INFORMATION (requires SeTcbPrivilege)
    SystemCoverageInformation,                              // q: COVERAGE_MODULES s: COVERAGE_MODULE_REQUEST // ExpCovQueryInformation (requires SeDebugPrivilege)
    SystemPrefetchPatchInformation,                         // q: SYSTEM_PREFETCH_PATCH_INFORMATION
    SystemVerifierFaultsInformation,                        // s: SYSTEM_VERIFIER_FAULTS_INFORMATION (requires SeDebugPrivilege)
    SystemSystemPartitionInformation,                       // q: SYSTEM_SYSTEM_PARTITION_INFORMATION
    SystemSystemDiskInformation,                            // q: SYSTEM_SYSTEM_DISK_INFORMATION
    SystemProcessorPerformanceDistribution,                 // q: SYSTEM_PROCESSOR_PERFORMANCE_DISTRIBUTION (EX in: USHORT ProcessorGroup) // NtQuerySystemInformationEx // 100
    SystemNumaProximityNodeInformation,                     // qs: SYSTEM_NUMA_PROXIMITY_MAP
    SystemDynamicTimeZoneInformation,                       // qs: RTL_DYNAMIC_TIME_ZONE_INFORMATION (requires SeTimeZonePrivilege)
    SystemCodeIntegrityInformation,                         // q: SYSTEM_CODEINTEGRITY_INFORMATION // SeCodeIntegrityQueryInformation
    SystemProcessorMicrocodeUpdateInformation,              // s: SYSTEM_PROCESSOR_MICROCODE_UPDATE_INFORMATION
    SystemProcessorBrandString,                             // q: CHAR[] // HaliQuerySystemInformation -> HalpGetProcessorBrandString, info class 23
    SystemVirtualAddressInformation,                        // q: SYSTEM_VA_LIST_INFORMATION[]; s: SYSTEM_VA_LIST_INFORMATION[] (requires SeIncreaseQuotaPrivilege) // MmQuerySystemVaInformation
    SystemLogicalProcessorAndGroupInformation,              // q: SYSTEM_LOGICAL_PROCESSOR_INFORMATION_EX (EX in: LOGICAL_PROCESSOR_RELATIONSHIP RelationshipType) // since WIN7 // NtQuerySystemInformationEx // KeQueryLogicalProcessorRelationship
    SystemProcessorCycleTimeInformation,                    // q: SYSTEM_PROCESSOR_CYCLE_TIME_INFORMATION[] (EX in: USHORT ProcessorGroup) // NtQuerySystemInformationEx
    SystemStoreInformation,                                 // qs: SYSTEM_STORE_INFORMATION (requires SeProfileSingleProcessPrivilege) // SmQueryStoreInformation
    SystemRegistryAppendString,                             // s: SYSTEM_REGISTRY_APPEND_STRING_PARAMETERS // 110
    SystemAitSamplingValue,                                 // s: ULONG (requires SeProfileSingleProcessPrivilege)
    SystemVhdBootInformation,                               // q: SYSTEM_VHD_BOOT_INFORMATION
    SystemCpuQuotaInformation,                              // qs: PS_CPU_QUOTA_QUERY_INFORMATION
    SystemNativeBasicInformation,                           // q: SYSTEM_BASIC_INFORMATION
    SystemErrorPortTimeouts,                                // q: SYSTEM_ERROR_PORT_TIMEOUTS
    SystemLowPriorityIoInformation,                         // q: SYSTEM_LOW_PRIORITY_IO_INFORMATION
    SystemTpmBootEntropyInformation,                        // q: BOOT_ENTROPY_NT_RESULT // ExQueryBootEntropyInformation
    SystemVerifierCountersInformation,                      // q: SYSTEM_VERIFIER_COUNTERS_INFORMATION
    SystemPagedPoolInformationEx,                           // q: SYSTEM_FILECACHE_INFORMATION; s (requires SeIncreaseQuotaPrivilege) (info for WorkingSetTypePagedPool)
    SystemSystemPtesInformationEx,                          // q: SYSTEM_FILECACHE_INFORMATION; s (requires SeIncreaseQuotaPrivilege) (info for WorkingSetTypeSystemPtes) // 120
    SystemNodeDistanceInformation,                          // q: USHORT[4*NumaNodes] // (EX in: USHORT NodeNumber) // NtQuerySystemInformationEx
    SystemAcpiAuditInformation,                             // q: SYSTEM_ACPI_AUDIT_INFORMATION // HaliQuerySystemInformation -> HalpAuditQueryResults, info class 26
    SystemBasicPerformanceInformation,                      // q: SYSTEM_BASIC_PERFORMANCE_INFORMATION // name:wow64:whNtQuerySystemInformation_SystemBasicPerformanceInformation
    SystemQueryPerformanceCounterInformation,               // q: SYSTEM_QUERY_PERFORMANCE_COUNTER_INFORMATION // since WIN7 SP1
    SystemSessionBigPoolInformation,                        // q: SYSTEM_SESSION_POOLTAG_INFORMATION // since WIN8
    SystemBootGraphicsInformation,                          // qs: SYSTEM_BOOT_GRAPHICS_INFORMATION (kernel-mode only)
    SystemScrubPhysicalMemoryInformation,                   // qs: MEMORY_SCRUB_INFORMATION
    SystemBadPageInformation,                               // q: SYSTEM_BAD_PAGE_INFORMATION
    SystemProcessorProfileControlArea,                      // qs: SYSTEM_PROCESSOR_PROFILE_CONTROL_AREA
    SystemCombinePhysicalMemoryInformation,                 // s: MEMORY_COMBINE_INFORMATION, MEMORY_COMBINE_INFORMATION_EX, MEMORY_COMBINE_INFORMATION_EX2 // 130
    SystemEntropyInterruptTimingInformation,                // qs: SYSTEM_ENTROPY_TIMING_INFORMATION
    SystemConsoleInformation,                               // qs: SYSTEM_CONSOLE_INFORMATION
    SystemPlatformBinaryInformation,                        // q: SYSTEM_PLATFORM_BINARY_INFORMATION (requires SeTcbPrivilege)
    SystemPolicyInformation,                                // q: SYSTEM_POLICY_INFORMATION (Warbird/Encrypt/Decrypt/Execute)
    SystemHypervisorProcessorCountInformation,              // q: SYSTEM_HYPERVISOR_PROCESSOR_COUNT_INFORMATION
    SystemDeviceDataInformation,                            // q: SYSTEM_DEVICE_DATA_INFORMATION
    SystemDeviceDataEnumerationInformation,                 // q: SYSTEM_DEVICE_DATA_INFORMATION
    SystemMemoryTopologyInformation,                        // q: SYSTEM_MEMORY_TOPOLOGY_INFORMATION
    SystemMemoryChannelInformation,                         // q: SYSTEM_MEMORY_CHANNEL_INFORMATION
    SystemBootLogoInformation,                              // q: SYSTEM_BOOT_LOGO_INFORMATION // 140
    SystemProcessorPerformanceInformationEx,                // q: SYSTEM_PROCESSOR_PERFORMANCE_INFORMATION_EX // (EX in: USHORT ProcessorGroup) // NtQuerySystemInformationEx // since WINBLUE
    SystemCriticalProcessErrorLogInformation,               // q: CRITICAL_PROCESS_EXCEPTION_DATA
    SystemSecureBootPolicyInformation,                      // q: SYSTEM_SECUREBOOT_POLICY_INFORMATION
    SystemPageFileInformationEx,                            // q: SYSTEM_PAGEFILE_INFORMATION_EX
    SystemSecureBootInformation,                            // q: SYSTEM_SECUREBOOT_INFORMATION
    SystemEntropyInterruptTimingRawInformation,             // qs: SYSTEM_ENTROPY_TIMING_INFORMATION
    SystemPortableWorkspaceEfiLauncherInformation,          // q: SYSTEM_PORTABLE_WORKSPACE_EFI_LAUNCHER_INFORMATION
    SystemFullProcessInformation,                           // q: SYSTEM_EXTENDED_PROCESS_INFORMATION with SYSTEM_PROCESS_INFORMATION_EXTENSION (requires admin)
    SystemKernelDebuggerInformationEx,                      // q: SYSTEM_KERNEL_DEBUGGER_INFORMATION_EX
    SystemBootMetadataInformation,                          // q: (requires SeTcbPrivilege) // 150
    SystemSoftRebootInformation,                            // q: ULONG
    SystemElamCertificateInformation,                       // s: SYSTEM_ELAM_CERTIFICATE_INFORMATION
    SystemOfflineDumpConfigInformation,                     // q: OFFLINE_CRASHDUMP_CONFIGURATION_TABLE_V2
    SystemProcessorFeaturesInformation,                     // q: SYSTEM_PROCESSOR_FEATURES_INFORMATION
    SystemRegistryReconciliationInformation,                // s: NULL (requires admin) (flushes registry hives)
    SystemEdidInformation,                                  // q: SYSTEM_EDID_INFORMATION
    SystemManufacturingInformation,                         // q: SYSTEM_MANUFACTURING_INFORMATION // since THRESHOLD
    SystemEnergyEstimationConfigInformation,                // q: SYSTEM_ENERGY_ESTIMATION_CONFIG_INFORMATION
    SystemHypervisorDetailInformation,                      // q: SYSTEM_HYPERVISOR_DETAIL_INFORMATION
    SystemProcessorCycleStatsInformation,                   // q: SYSTEM_PROCESSOR_CYCLE_STATS_INFORMATION (EX in: USHORT ProcessorGroup) // NtQuerySystemInformationEx // 160
    SystemVmGenerationCountInformation,
    SystemTrustedPlatformModuleInformation,                 // q: SYSTEM_TPM_INFORMATION
    SystemKernelDebuggerFlags,                              // q: SYSTEM_KERNEL_DEBUGGER_FLAGS
    SystemCodeIntegrityPolicyInformation,                   // qs: SYSTEM_CODEINTEGRITYPOLICY_INFORMATION
    SystemIsolatedUserModeInformation,                      // q: SYSTEM_ISOLATED_USER_MODE_INFORMATION
    SystemHardwareSecurityTestInterfaceResultsInformation,
    SystemSingleModuleInformation,                          // q: SYSTEM_SINGLE_MODULE_INFORMATION
    SystemAllowedCpuSetsInformation,                        // s: SYSTEM_WORKLOAD_ALLOWED_CPU_SET_INFORMATION
    SystemVsmProtectionInformation,                         // q: SYSTEM_VSM_PROTECTION_INFORMATION (previously SystemDmaProtectionInformation)
    SystemInterruptCpuSetsInformation,                      // q: SYSTEM_INTERRUPT_CPU_SET_INFORMATION // 170
    SystemSecureBootPolicyFullInformation,                  // q: SYSTEM_SECUREBOOT_POLICY_FULL_INFORMATION
    SystemCodeIntegrityPolicyFullInformation,
    SystemAffinitizedInterruptProcessorInformation,         // q: KAFFINITY_EX // (requires SeIncreaseBasePriorityPrivilege)
    SystemRootSiloInformation,                              // q: SYSTEM_ROOT_SILO_INFORMATION
    SystemCpuSetInformation,                                // q: SYSTEM_CPU_SET_INFORMATION // since THRESHOLD2
    SystemCpuSetTagInformation,                             // q: SYSTEM_CPU_SET_TAG_INFORMATION
    SystemWin32WerStartCallout,
    SystemSecureKernelProfileInformation,                   // q: SYSTEM_SECURE_KERNEL_HYPERGUARD_PROFILE_INFORMATION
    SystemCodeIntegrityPlatformManifestInformation,         // q: SYSTEM_SECUREBOOT_PLATFORM_MANIFEST_INFORMATION // NtQuerySystemInformationEx // since REDSTONE
    SystemInterruptSteeringInformation,                     // q: in: SYSTEM_INTERRUPT_STEERING_INFORMATION_INPUT, out: SYSTEM_INTERRUPT_STEERING_INFORMATION_OUTPUT // NtQuerySystemInformationEx
    SystemSupportedProcessorArchitectures,                  // p: in opt: HANDLE, out: SYSTEM_SUPPORTED_PROCESSOR_ARCHITECTURES_INFORMATION[] // NtQuerySystemInformationEx // 180
    SystemMemoryUsageInformation,                           // q: SYSTEM_MEMORY_USAGE_INFORMATION
    SystemCodeIntegrityCertificateInformation,              // q: SYSTEM_CODEINTEGRITY_CERTIFICATE_INFORMATION
    SystemPhysicalMemoryInformation,                        // q: SYSTEM_PHYSICAL_MEMORY_INFORMATION // since REDSTONE2
    SystemControlFlowTransition,                            // qs: (Warbird/Encrypt/Decrypt/Execute)
    SystemKernelDebuggingAllowed,                           // s: ULONG
    SystemActivityModerationExeState,                       // s: SYSTEM_ACTIVITY_MODERATION_EXE_STATE
    SystemActivityModerationUserSettings,                   // q: SYSTEM_ACTIVITY_MODERATION_USER_SETTINGS
    SystemCodeIntegrityPoliciesFullInformation,             // qs: NtQuerySystemInformationEx
    SystemCodeIntegrityUnlockInformation,                   // q: SYSTEM_CODEINTEGRITY_UNLOCK_INFORMATION // 190
    SystemIntegrityQuotaInformation,
    SystemFlushInformation,                                 // q: SYSTEM_FLUSH_INFORMATION
    SystemProcessorIdleMaskInformation,                     // q: ULONG_PTR[ActiveGroupCount] // since REDSTONE3
    SystemSecureDumpEncryptionInformation,                  // qs: NtQuerySystemInformationEx
    SystemWriteConstraintInformation,                       // q: SYSTEM_WRITE_CONSTRAINT_INFORMATION
    SystemKernelVaShadowInformation,                        // q: SYSTEM_KERNEL_VA_SHADOW_INFORMATION
    SystemHypervisorSharedPageInformation,                  // q: SYSTEM_HYPERVISOR_SHARED_PAGE_INFORMATION // since REDSTONE4
    SystemFirmwareBootPerformanceInformation,
    SystemCodeIntegrityVerificationInformation,             // q: SYSTEM_CODEINTEGRITYVERIFICATION_INFORMATION
    SystemFirmwarePartitionInformation,                     // q: SYSTEM_FIRMWARE_PARTITION_INFORMATION // 200
    SystemSpeculationControlInformation,                    // q: SYSTEM_SPECULATION_CONTROL_INFORMATION // (CVE-2017-5715) REDSTONE3 and above.
    SystemDmaGuardPolicyInformation,                        // q: SYSTEM_DMA_GUARD_POLICY_INFORMATION
    SystemEnclaveLaunchControlInformation,                  // q: SYSTEM_ENCLAVE_LAUNCH_CONTROL_INFORMATION
    SystemWorkloadAllowedCpuSetsInformation,                // q: SYSTEM_WORKLOAD_ALLOWED_CPU_SET_INFORMATION // since REDSTONE5
    SystemCodeIntegrityUnlockModeInformation,               // q: SYSTEM_CODEINTEGRITY_UNLOCK_INFORMATION
    SystemLeapSecondInformation,                            // q: SYSTEM_LEAP_SECOND_INFORMATION
    SystemFlags2Information,                                // q: SYSTEM_FLAGS_INFORMATION
    SystemSecurityModelInformation,                         // q: SYSTEM_SECURITY_MODEL_INFORMATION // since 19H1
    SystemCodeIntegritySyntheticCacheInformation,           // qs: NtQuerySystemInformationEx
    SystemFeatureConfigurationInformation,                  // q: in: SYSTEM_FEATURE_CONFIGURATION_QUERY, out: SYSTEM_FEATURE_CONFIGURATION_INFORMATION; s: SYSTEM_FEATURE_CONFIGURATION_UPDATE // NtQuerySystemInformationEx // since 20H1 // 210
    SystemFeatureConfigurationSectionInformation,           // q: in: SYSTEM_FEATURE_CONFIGURATION_SECTIONS_REQUEST, out: SYSTEM_FEATURE_CONFIGURATION_SECTIONS_INFORMATION // NtQuerySystemInformationEx
    SystemFeatureUsageSubscriptionInformation,              // q: SYSTEM_FEATURE_USAGE_SUBSCRIPTION_DETAILS; s: SYSTEM_FEATURE_USAGE_SUBSCRIPTION_UPDATE
    SystemSecureSpeculationControlInformation,              // q: SECURE_SPECULATION_CONTROL_INFORMATION
    SystemSpacesBootInformation,                            // qs: since 20H2
    SystemFwRamdiskInformation,                             // q: SYSTEM_FIRMWARE_RAMDISK_INFORMATION
    SystemWheaIpmiHardwareInformation,
    SystemDifSetRuleClassInformation,                       // s: SYSTEM_DIF_VOLATILE_INFORMATION (requires SeDebugPrivilege)
    SystemDifClearRuleClassInformation,                     // s: NULL (requires SeDebugPrivilege)
    SystemDifApplyPluginVerificationOnDriver,               // q: SYSTEM_DIF_PLUGIN_DRIVER_INFORMATION (requires SeDebugPrivilege)
    SystemDifRemovePluginVerificationOnDriver,              // q: SYSTEM_DIF_PLUGIN_DRIVER_INFORMATION (requires SeDebugPrivilege) // 220
    SystemShadowStackInformation,                           // q: SYSTEM_SHADOW_STACK_INFORMATION
    SystemBuildVersionInformation,                          // q: in: ULONG (LayerNumber), out: SYSTEM_BUILD_VERSION_INFORMATION // NtQuerySystemInformationEx
    SystemPoolLimitInformation,                             // q: SYSTEM_POOL_LIMIT_INFORMATION (requires SeIncreaseQuotaPrivilege) // NtQuerySystemInformationEx
    SystemCodeIntegrityAddDynamicStore,                     // q: CodeIntegrity-AllowConfigurablePolicy-CustomKernelSigners
    SystemCodeIntegrityClearDynamicStores,                  // q: CodeIntegrity-AllowConfigurablePolicy-CustomKernelSigners
    SystemDifPoolTrackingInformation,
    SystemPoolZeroingInformation,                           // q: SYSTEM_POOL_ZEROING_INFORMATION
    SystemDpcWatchdogInformation,                           // qs: SYSTEM_DPC_WATCHDOG_CONFIGURATION_INFORMATION
    SystemDpcWatchdogInformation2,                          // qs: SYSTEM_DPC_WATCHDOG_CONFIGURATION_INFORMATION_V2
    SystemSupportedProcessorArchitectures2,                 // q: in opt: HANDLE, out: SYSTEM_SUPPORTED_PROCESSOR_ARCHITECTURES_INFORMATION[] // NtQuerySystemInformationEx // 230
    SystemSingleProcessorRelationshipInformation,           // q: SYSTEM_LOGICAL_PROCESSOR_INFORMATION_EX // (EX in: PROCESSOR_NUMBER Processor) // NtQuerySystemInformationEx
    SystemXfgCheckFailureInformation,                       // q: SYSTEM_XFG_FAILURE_INFORMATION
    SystemIommuStateInformation,                            // q: SYSTEM_IOMMU_STATE_INFORMATION // since 22H1
    SystemHypervisorMinrootInformation,                     // q: SYSTEM_HYPERVISOR_MINROOT_INFORMATION
    SystemHypervisorBootPagesInformation,                   // q: SYSTEM_HYPERVISOR_BOOT_PAGES_INFORMATION
    SystemPointerAuthInformation,                           // q: SYSTEM_POINTER_AUTH_INFORMATION
    SystemSecureKernelDebuggerInformation,                  // qs: NtQuerySystemInformationEx
    SystemOriginalImageFeatureInformation,                  // q: in: SYSTEM_ORIGINAL_IMAGE_FEATURE_INFORMATION_INPUT, out: SYSTEM_ORIGINAL_IMAGE_FEATURE_INFORMATION_OUTPUT // NtQuerySystemInformationEx
    SystemMemoryNumaInformation,                            // q: SYSTEM_MEMORY_NUMA_INFORMATION_INPUT, SYSTEM_MEMORY_NUMA_INFORMATION_OUTPUT // NtQuerySystemInformationEx
    SystemMemoryNumaPerformanceInformation,                 // q: SYSTEM_MEMORY_NUMA_PERFORMANCE_INFORMATION_INPUTSYSTEM_MEMORY_NUMA_PERFORMANCE_INFORMATION_INPUT, SYSTEM_MEMORY_NUMA_PERFORMANCE_INFORMATION_OUTPUT // since 24H2 // 240
    SystemCodeIntegritySignedPoliciesFullInformation,
    SystemSecureCoreInformation,                            // qs: SystemSecureSecretsInformation
    SystemTrustedAppsRuntimeInformation,                    // q: SYSTEM_TRUSTEDAPPS_RUNTIME_INFORMATION
    SystemBadPageInformationEx,                             // q: SYSTEM_BAD_PAGE_INFORMATION
    SystemResourceDeadlockTimeout,                          // q: ULONG
    SystemBreakOnContextUnwindFailureInformation,           // q: ULONG (requires SeDebugPrivilege)
    SystemOslRamdiskInformation,                            // q: SYSTEM_OSL_RAMDISK_INFORMATION
    SystemCodeIntegrityPolicyManagementInformation,         // q: SYSTEM_CODEINTEGRITYPOLICY_MANAGEMENT // since 25H2
    SystemMemoryNumaCacheInformation,
    SystemProcessorFeaturesBitMapInformation,               // q: // 250
    SystemRefTraceInformationEx,                            // q: SYSTEM_REF_TRACE_INFORMATION_EX
    SystemBasicProcessInformation,                          // q: SYSTEM_BASICPROCESS_INFORMATION
    SystemHandleCountInformation,                           // q: SYSTEM_HANDLECOUNT_INFORMATION
    MaxSystemInfoClass
} SYSTEM_INFORMATION_CLASS;

其中第二個參數是一個指向即將接收資訊的指針,將會返回一個結構體,而這個結構體的型別會依照你在 SystemInformationClass 參數中所指定的類別而決定。

第三個參數是指定 SystemInformation 參數所指向的緩衝區大小,以位元組為單位。

第四個參數則是一個 ULONG 指針,用來接收寫入的 SystemInformation 的實際大小。

獲取 NtQuerySystemInformation 的位址

首先,我們需要先用 GetProcAddressGetModuleHandlentdll.dll 中獲取 NtQuerySystemInformation 的地址。

    // Load NtQuerySystemInformation dynamically
    const ntdll = GetModuleHandleW(W("ntdll.dll")) orelse {
        print("[!] GetModuleHandleW failed!\n", .{});
        return null;
    };

    const nt_query_proc = GetProcAddress(ntdll, "NtQuerySystemInformation") orelse {
        print("[!] GetProcAddress failed!\n", .{});
        return null;
    };

    // Cast to function pointer
    const nt_query_sys_info = @as(NtQuerySystemInformationFn, @ptrCast(nt_query_proc));

如此一來,我們就已經獲得了 NtQuerySystemInformation 的函數指針。注意,這個函數指針的型別是我們自己定義的,它長這樣。

// Function pointer type for NtQuerySystemInformation
const NtQuerySystemInformationFn = *const fn (
    SystemInformationClass: SYSTEM_INFORMATION_CLASS,
    SystemInformation: PVOID,
    SystemInformationLength: ULONG,
    ReturnLength: ?*ULONG,
) callconv(WINAPI) NTSTATUS;

SYSTEM_PROCESS_INFORMATION 結構體

獲取到了 NtQuerySystemInformation 的函數指針後,我們就可以傳入 SYSTEM_INFORMATION_CLASS 中的 SystemProcessInformation 這個值,去取得當前的所有進程。

剛剛有提到過,它會回傳一個 SYSTEM_PROCESS_INFORMATION 的結構體的陣列,裡面的每個結構體都代表著一個系統中的進程。那接下來,讓我們來具體看一下這個結構體的樣貌吧!我們可以透過微軟的官方文檔,來查看一下它的定義。

typedef struct _SYSTEM_PROCESS_INFORMATION {
    ULONG NextEntryOffset;
    ULONG NumberOfThreads;
    BYTE Reserved1[48];
    UNICODE_STRING ImageName;
    KPRIORITY BasePriority;
    HANDLE UniqueProcessId;
    PVOID Reserved2;
    ULONG HandleCount;
    ULONG SessionId;
    PVOID Reserved3;
    SIZE_T PeakVirtualSize;
    SIZE_T VirtualSize;
    ULONG Reserved4;
    SIZE_T PeakWorkingSetSize;
    SIZE_T WorkingSetSize;
    PVOID Reserved5;
    SIZE_T QuotaPagedPoolUsage;
    PVOID Reserved6;
    SIZE_T QuotaNonPagedPoolUsage;
    SIZE_T PagefileUsage;
    SIZE_T PeakPagefileUsage;
    SIZE_T PrivatePageCount;
    LARGE_INTEGER Reserved7[6];
} SYSTEM_PROCESS_INFORMATION;

可以看到,其中有一個成員叫做 ImageName,它是一個 UNICODE_STRING 型別的資料,會包含進程名稱以及 UniqueProcessId,也就是 PID。並且,我們可以透過第一個成員 NextEntryOffset 來存取到陣列中的下一個元素。

因為我們使用 SystemProcessInformation 這個標誌來呼叫 NtQuerySystemInformation 會返回一個未知大小 SYSTEM_PROCESS_INFORMATION 陣列,所以我們要像之前一樣呼叫這個函數兩次,第一次用來獲取它的回傳值大小,並在分配記憶體之後,呼叫第二次來存入資料。

第一次呼叫會出現錯誤,但是這是正常的行為,因為我們只是為了要獲取陣列的大小,所以我們把第 2 個跟第 3 個參數分別傳入 null 跟 0,這將會導致他出現一個 STATUS_INFO_LENGTH_MISMATCH 的錯誤,但不必理會。

    // First call to get buffer size
    _ = nt_query_sys_info(.SystemProcessInformation, null, 0, &return_length);

    if (return_length == 0) {
        print("[!] Failed to get buffer size.\n", .{});
        return null;
    }

    // Allocate buffer (equivalent to Rust's HeapAlloc)
    const heap = GetProcessHeap();
    const proc_info_ptr = HeapAlloc(heap, HEAP_ZERO_MEMORY, return_length) orelse {
        print("[!] HeapAlloc failed!\n", .{});
        return null;
    };
    defer _ = HeapFree(heap, 0, proc_info_ptr);

    // Second call to get actual data
    const status = nt_query_sys_info(
        .SystemProcessInformation,
        proc_info_ptr,
        return_length,
        &return_length,
    );

    if (status != STATUS_SUCCESS) {
        print("[!] NtQuerySystemInformation failed!\n", .{});
        return null;
    }

遍歷所有進程

由於我們已經獲取了進程的陣列,那我們下一步就是要去迭代它,去遍歷每一個進程,並透過存取 ImageName.Buffer,因為這裡會存放進程名稱,我們將在每一個迴圈裡去比較進程名稱是否為我們的目標進程。

由於每個進程的資料型別在這邊都是 SYSTEM_PROCESS_INFORMATION,所以我們要存取下一個進程的時候會用到 NextEntryOffset 這個成員。具體來說,是要把前一個進程的地址加上 NextEntryOffset,以下為示範程式碼。

if (proc_info.NextEntryOffset == 0) {
    break;
}

proc_info = @as(*SYSTEM_PROCESS_INFORMATION, @ptrCast(@alignCast(@as([*]u8, @ptrCast(proc_info)) + proc_info.NextEntryOffset)));

我們來看一下這個用來遍歷所有進程的迴圈的完整程式碼。

    while (true) {
        // Get process name from UNICODE_STRING
        const image_name_ptr = proc_info.ImageName.Buffer;
        const process_id = @as(DWORD, @intCast(@intFromPtr(proc_info.UniqueProcessId)));

        if (image_name_ptr != null and proc_info.ImageName.Length > 0) {
            // Convert Unicode string to UTF-8 (equivalent to Rust's OsString::from_wide)
            const wide_chars = unicodeStringToSlice(proc_info.ImageName);

            // Convert UTF-16 to UTF-8
            var utf8_buffer: [260]u8 = undefined;
            if (std.unicode.utf16LeToUtf8(&utf8_buffer, wide_chars)) |utf8_len| {
                const process_name_str = utf8_buffer[0..utf8_len];

                // Convert to lowercase for comparison (equivalent to Rust's to_lowercase())
                const process_lower = toLowercase(allocator, process_name_str) catch continue;
                defer allocator.free(process_lower);

                // Compare process names (case-insensitive, equivalent to Rust comparison)
                if (std.mem.eql(u8, process_lower, target_lower)) {
                    const handle = OpenProcess(PROCESS_ALL_ACCESS, 0, process_id) orelse {
                        print("[!] OpenProcess failed for PID: {}\n", .{process_id});
                        continue;
                    };

                    return ProcessResult{
                        .pid = process_id,
                        .handle = handle,
                    };
                }
            } else |_| {
                // Skip processes with encoding errors
                continue;
            }
        }

        // Move to next process (equivalent to Rust's pointer arithmetic)
        if (proc_info.NextEntryOffset == 0) {
            break;
        }

        proc_info = @as(*SYSTEM_PROCESS_INFORMATION, @ptrCast(@alignCast(@as([*]u8, @ptrCast(proc_info)) + proc_info.NextEntryOffset)));
    }

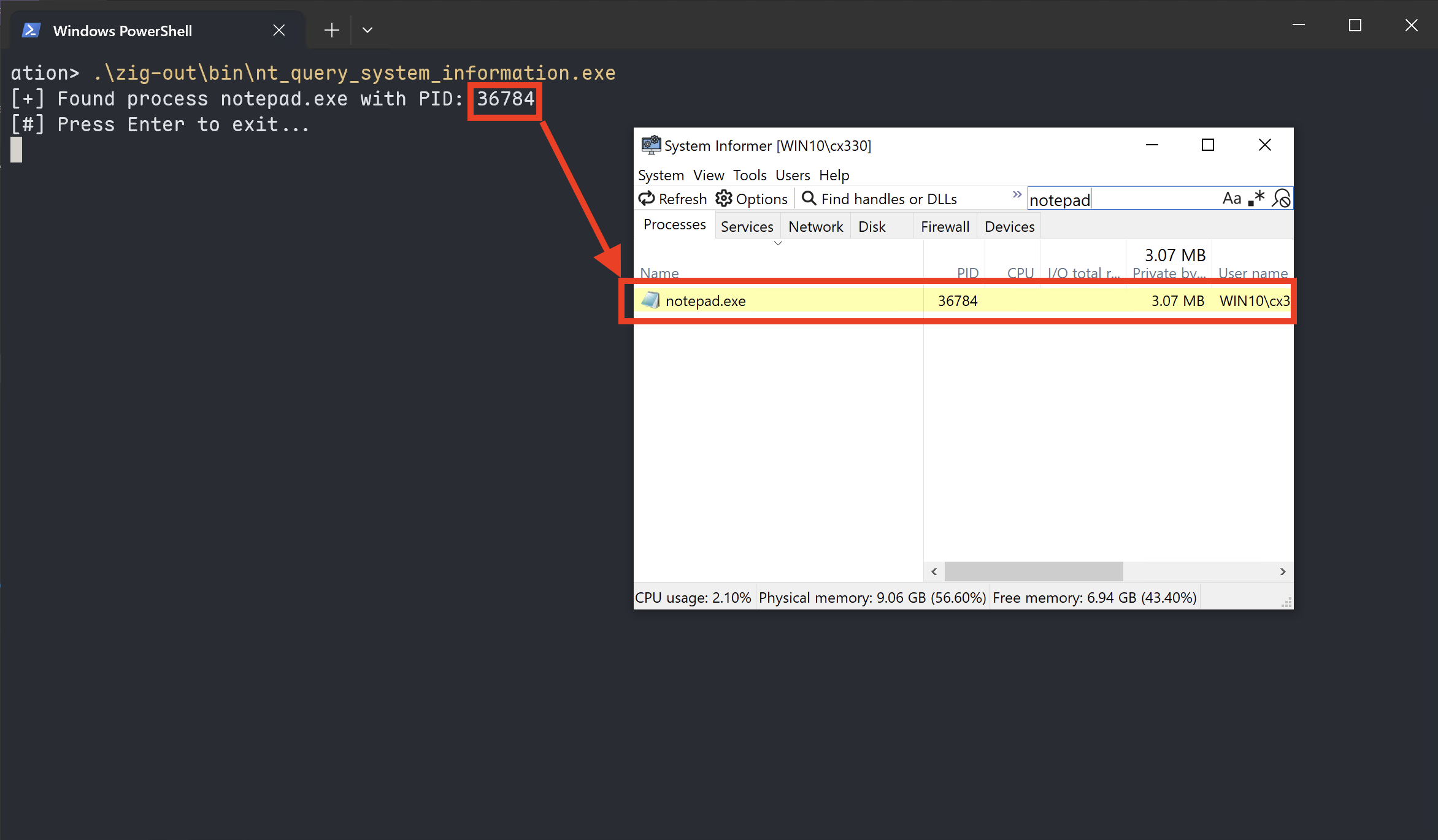

執行結果

在這個範例中,我們把目標進程設定為 notepad.exe,我們來看一下結果。

Execution Result

鐵人賽期 PoPoo,你今天轉 Po 了嗎?

大家掰掰,我等一下要去夜市吃飯了!今天是第 19 天,明天是三分之二了,期待與大家再次相見!

今天跟大家說了又一種進程枚舉的方式,明天應該會來跟大家分享回呼函式的 Shellcode 執行,大家可以期待一下!

如果對惡意程式開發或是惡意程式分析有興趣的話,這個系列會很適合你!最後也感謝大家的閱讀,歡迎順手按讚留言訂閱轉發(轉發可以讓朋友們知道你都在讀這種很技術的文章,他們會覺得你好帥好強好電,然後開始裝弱互相吹捧)~明天見!


上一篇
Day18 - 幽影巡查,黑暗中的死亡筆記本:Windows 進程枚舉術(上)
下一篇
Day20 - 幽谷迴響的低語呢喃:Callback 函數的 Shellcode 執行
系列文
Zig 世代惡意程式戰記:暗影綠鬣蜥 の 獠牙與劇毒!20
圖片
  熱門推薦
圖片
{{ item.channelVendor }} | {{ item.webinarstarted }} |
{{ formatDate(item.duration) }}
直播中

1 則留言

0
tt27
iT邦新手 5 級 ‧ 2025-10-03 19:13:52

求开课

我要留言

立即登入留言
